Product Details
Place of Origin: Germany
Brand Name: Wilo
Model Number: Helix-VE
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: us$ 200~2000
Payment Terms: T/T,MoneyGram,Western Union,D/P,D/A
Supply Ability: 50/
Maximum Head: |
240m |
Maximum Flow Rate: |
80m³/h |
Drive: |
Motor |
Number Of Working Impellers: |
Multistage Pump |
Pressure: |
16/25 Bar |
Inlet Method Of Impeller: |
Single Suction Pump |
Pump Shaft Position: |
Vertical Pump |
Impeller Architecture: |
Closed |
Weight Specifications: |
126 Kg |
Maximum Environmental Temperature: |
+40℃ |
Medium Temperature Range: |
-20℃~120℃ |
Maximum Head: |
240m |
Maximum Flow Rate: |
80m³/h |
Drive: |
Motor |
Number Of Working Impellers: |
Multistage Pump |
Pressure: |
16/25 Bar |
Inlet Method Of Impeller: |
Single Suction Pump |
Pump Shaft Position: |
Vertical Pump |
Impeller Architecture: |
Closed |
Weight Specifications: |
126 Kg |
Maximum Environmental Temperature: |
+40℃ |
Medium Temperature Range: |
-20℃~120℃ |
Product Description
|
 |
Summary

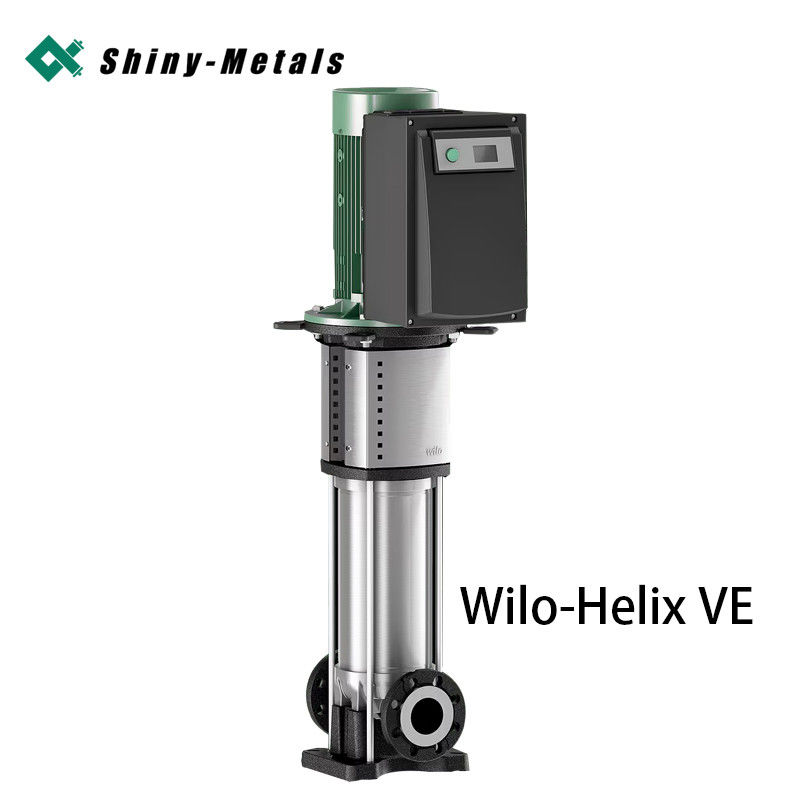

Wilo-Helix VE (11-22 kW) is a variable speed vertical multistage pump for cold water application in large buildings. It combines an IE5 EC motor drive, an integrated, air-cooled frequency converter and various control modes. The result is high energy efficiency in both closed and open systems.
Proven pump hydraulics in stainless steel, a separate lantern roller bearing that ensures optimum admission of axial thrusts, integrated protection functions and low water detection allows high reliability.
An easy integration into building automation is possible thanks to analogue and digital interfaces and IF modules.
Design Features
1.Multistage, stainless steel, high-efficiency pump with adjustable speed, 2D/3D hydraulicsand standard motor
Materials Standard version
Helix VE 2, 4, 6, 10, 16:
1.Impellers, stage housings and guide vanes made of stainless steel 1.4307 (AISI 304L)
2.Pump housing made of stainless steel 1.4301 (AISI 304)
3.Baseplate and lantern in EN-GJL-250 (cataphoretic coated)
4.Shaft made of stainless steel 1.4301 (AISI 304) or 1.4462 (AISI 318LN) (depending on version)
5.Sleeve under the mechanical seal 1.4404 (316L)
6.O-ring of EPDM (FKM gasket on request)
7.Jacket pipe made of stainless steel 1.4301 (AISI 304)
For corrosive media
1.Impellers, stage housings and guide vane apparatuses made of stainless steel 1.4404 (316L)
2.Pump housing made of stainless steel 1.4404 (316L)
3.Shaft made of stainless steel 1.4404 (316L) or 1.4462 (AISI 318LN) (depending on version)
4.Sleeve under the mechanical seal 1.4404 (316L)
5.O-ring of FKM (EPDM gasket on request)
6.Jacket pipe made of stainless steel 1.4404 (316L)
