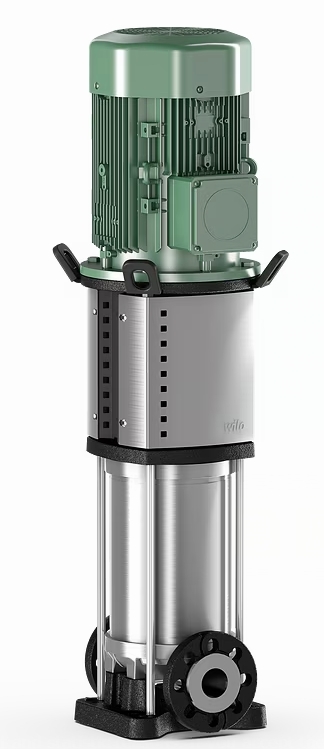

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump

Name: Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: Helix-V
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: WILO

Model Number: Helix-V

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: US$1,098.00-5,600.00

Packaging Details: Wooden Box

Payment Terms: ,L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 100

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                wilo centrifugal pump, booster centrifugal pump, booster wilo recirculating pump


Max.Capacity:	>400 L/min	Max.Head:	>150m
Driving Type:	Motor	Helix V 2 - 16 (EPDM):	-30 To 120 °C (130 °C On Request)
Helix V 2 - 16 For Aggressive Media (FKM):	-15 To 90 °C	Max. Operating Pressure:	16/25/30 Bar
Impeller Number:	Single-Stage Pump	Working Pressure:	Low Pressure Pump
Influent Type Of Impeller:	Single Suction Pump	Position Of Pump Shaft:	Vertical Pump
Pump Casing Combined:	Verticaljoint Surface Pump	Mounting Height:	Since Irrigation Centrifugal Pumps
Impeller:	Closed	Usage:	Water Supply And Pressure Boosting，Industrial Circulation Systems，Process Water ，Closed Cooling Circuits ，Fire-fighting Systems，Washing Systems ，Irrigation

Max.Capacity:	>400 L/min
Max.Head:	>150m
Driving Type:	Motor
Helix V 2 - 16 (EPDM):	-30 To 120 °C (130 °C On Request)
Helix V 2 - 16 For Aggressive Media (FKM):	-15 To 90 °C
Max. Operating Pressure:	16/25/30 Bar
Impeller Number:	Single-Stage Pump
Working Pressure:	Low Pressure Pump
Influent Type Of Impeller:	Single Suction Pump
Position Of Pump Shaft:	Vertical Pump
Pump Casing Combined:	Verticaljoint Surface Pump
Mounting Height:	Since Irrigation Centrifugal Pumps
Impeller:	Closed
Usage:	Water Supply And Pressure Boosting，Industrial Circulation Systems，Process Water ，Closed Cooling Circuits ，Fire-fighting Systems，Washing Systems ，Irrigation

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump

Product advantages

Technical data

Electrical connection: 3~400 V (±10 %), 50 Hz
≤ 4 kW 230 V/ 400 V; Δ/Y
> 4 kW 400 V/ 690 V; Δ/Y
Fluid temperature range:
Helix V 2 - 16 (EPDM): -30 to 120 °C (130 °C on request)
Helix V 2 - 16 for aggressive media (FKM): -15 to 90 °C
Helix V22 - 52 (EPDM): -30 to 120 °C (130 °C on request)
Helix V22 - 52 for aggressive media (FKM): -15 to 90 °C
Max. operating pressure: 16/25/30 bar
Protection class: IP 55
Max. ambient temperature: +50°C (extended temperature ranges on request)
Available versions:
Helix V 2 - 16: PN 16 with oval flanges, PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005 (Victaulic coupling or Triclamp connection on request)
Helix V 22 - 52: PN 16/PN 25/PN 40 with round flanges according to ISO 2531 and ISO 7005


Features/Product Advantages

Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised

Corrosion-resistant impellers, guide vanes and stage housings

Flow and NPSH-optimised pump housing

Maintenance-friendly design with particularly robust coupling guard

Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Application

1.Water supply and pressure boosting

2.Industrial circulation systems

3.Process water

4.Closed cooling circuits

5.Fire-fighting systems

6.Washing systems

7.Irrigation

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 1

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 2

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 3

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 4

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 5

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 6

Wilo Helix V High Head Cold and Hot Water Booster Pump Circulation Pump 8
