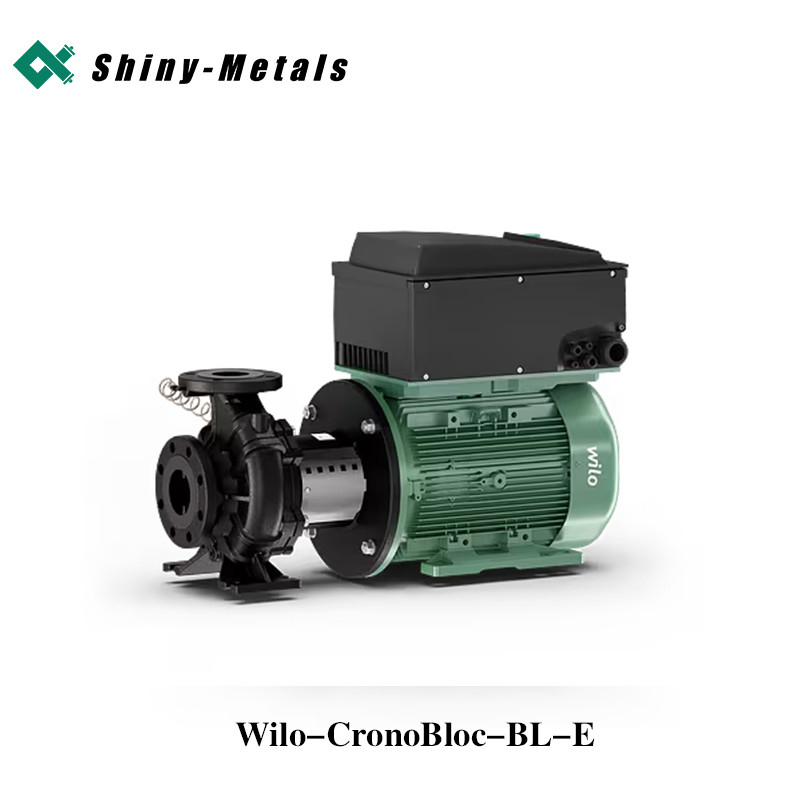

Wilo CronoBloc BL E High Performance Glanded Pump 500 Gpm Centrifugal Pump

Name: Wilo CronoBloc BL E High Performance Glanded Pump 500 Gpm Centrifugal Pump
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: CronoBloc-BL-E
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: CronoBloc-BL-E

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Wilo CronoBloc Glanded Pump, 500 Gpm Glanded Pump, Wilo CronoBloc 500 gpm centrifugal pump


Maximum Operating Pressure:	16 Bar	Motor Options:	Single Or Three Phase, 50 Or 60 Hz
Maximum Viscosity:	150 Mm2/s	Flow Rate:	Up To 125 M3/h
Model:	TP/TPE	Maximum Operating Temperature:	120°C

Maximum Operating Pressure:	16 Bar
Motor Options:	Single Or Three Phase, 50 Or 60 Hz
Maximum Viscosity:	150 Mm2/s
Flow Rate:	Up To 125 M3/h
Model:	TP/TPE
Maximum Operating Temperature:	120°C

Wilo CronoBloc BL E High Performance Glanded Pump 500 Gpm Centrifugal Pump

Wilo CronoBloc BL E High-Performance Glanded Pump for Industrial Applications

Company Info

Address: Tianjin, China

Business Type: Trading Company

Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware

Management System Certification:ISO 9001

Main Products: Water Pump Set

Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"

Product Description

Wilo CronoBloc BL-E is an electronically controlled glazed single pump that plays an important role in heating, cooling, and cooling systems.

Flow range : <500m³/h

Lift range : ≤ 90m

Permissible temperature range of -20 °C to +140 °C

Minimum efficiency index (MEI) ≥ 0.4

Nominal diameter DN 32 to DN 150

Max. operating pressure 16 bar up to +120 °C, 13 bar up to +140 °C

Aplication field :TWilo CronoBloc BL-E is mainly used for pumping heating water (compliant with VDI 2035), chilled water, and water ethylene glycol mixtures (non abrasive substances) in buildings. It plays a key role in heating, cooling, and cooling systems, ensuring efficient and stable operation of water circulation in the system and maintaining comfortable indoor temperatures.

Your advantages

Energy savings due to integrated electronic power adjustment
Optional interfaces for bus communication using plug-in IF-Modules
Simple operation due to tried-and-tested Green Button Technology and display
Integrated full motor protection (PTC thermistor sensor) with trip electronics
Meets user requirements thanks to performance and main dimensions in accordance with EN 733 (for end-suction pumps)

Wilo CronoBloc BL E High Performance Glanded Pump 500 Gpm Centrifugal Pump 1

Wilo CronoBloc BL E High Performance Glanded Pump 500 Gpm Centrifugal Pump 2

Design

Electronically controlled glanded single pump in monobloc design with flange connection and automatic power adjustment.

Application

The pumping of heating water (in accordance with VDI 2035), chilled water and water-glycol mixtures without abrasive substances in heating, chilled water and cooling systems.

Equipment/function

Operating modes

Δp-c for constant differential pressure
Δp-v for variable differential pressure
PID-Control
Constant speed (n=constant)

Manual operation level

Green button and display

Manual functions

Differential pressure setpoint setting
Setting the speed (manual control mode)
Setting the operating mode
Setting the pump ON/OFF
Configuration of all operating parameters
Fault acknowledgement

External control functions

"Overriding Off" control input
Analogue input 0 – 10 V, 0 – 20 mA for constant speed (DDC) and remote setpoint adjustment
Analogue input 2 – 10 V, 4 – 20 mA for constant speed (DDC) and remote setpoint adjustment
Analogue input 0 – 10 V for actual value signal from pressure sensor
Analogue input 2 – 10 V, 0 – 20 mA, 4 – 20 mA for actual value signal from pressure sensor

Signal and display functions

Collective fault signal SSM
Collective run signal SBM

Data exchange

Infrared interface for wireless data exchange with IR-Monitor/IR-Stick
Plug-in position for Wilo IF-Modules (Modbus, BACnet, CAN, PLR, LON) for connection to building automation
Interface to twin-head pump communication

Safety functions

Full motor protection with integrated trip electronics
Access disable

Dual pump management (2 x single pump; Y-piece application only)

Main/standby operation (automatic fault-actuated switchover)
Pump cycling main/standby operation after 24 hours
Parallel operation
Parallel operation (efficiency-optimised peak load activation and deactivation)

Typekey

Example	BL-E 80/145-11/2-R1
BL-E	Monobloc pump with electronic control
80	Nominal diameter DN of the pipe connection (discharge port)
145	Nominal impeller diameter in mm
11	Rated power P2 in kW
2	Number of poles
-R1	Version without differential pressure sensor

Technical data

Permissible temperature range of -20 °C to +140 °C
Minimum efficiency index (MEI) ≥ 0.4
Mechanical seal for pumping water up to Tmax = +140 °C. Up to T ≤ +40 °C, a glycol admixture of 20 % to 40 % by volume is permissible. An alternative mechanical seal must be provided for water-glycol mixtures with a glycol content of > 40% to max. 50% by volume and a fluid temperature of > +40 °C to max. +120 °C or other fluids that differ from water. When using water-glycol mixtures, the use of an S1 variant with a corresponding mechanical seal is generally recommended.
Mains connection
- 3~440 V -5% +10%, 50/60 Hz
- 3~400 V ±10%, 50/60 Hz
- 3~380 V -5% +10%, 50/60 Hz
Compliance with electromagnetic compatibility without additional measures:
- Interference emission for residential environment according to EN 61800-3:2018
- Interference immunity for industrial environments according to EN 61800-3:2018
Protection class IP55
Nominal diameter DN 32 to DN 150
Max. operating pressure 16 bar up to +120 °C, 13 bar up to +140 °C

Materials

Pump housing and lantern: Standard: EN-GJL-250
Impeller: Standard: EN-GJL-200; optional: Bronze CuSn 10, stainless steel 1.4408
Shaft: 1.4122
Mechanical seal: AQEGG other mechanical seals on request

Construction

Single-stage low-pressure centrifugal pump in monobloc design, with axial suction port and radially arranged discharge port with

Mechanical seal
Flange connection with pressure measuring connection R 1/8
Lantern
Coupling
Drive with integrated electronic speed control

Scope of delivery

Pump
Installation and operating instructions

Options

Variant …-R1 without differential pressure sensor
...-L1 variant with bronze impeller (at additional charge)
…-L4 variant with stainless steel impeller (at additional charge)

Accessories

Supporting blocks for installation on a base
IR-Monitor, Wilo-IR-Stick
IF module PLR for connecting to PLR/interface converter
IF module LON for connection to the LONWORKS mains network
IF module BACnet
IF module Modbus
IF module CAN
Control system VR-HVAC
Control system CCe-HVAC
Control system SCe-HVAC
Differential pressure sensor (DDG)
