Industrial Circulation Glanded Pump Heating And Cooling Wilo CronoNorm NLG

Name: Industrial Circulation Glanded Pump Heating And Cooling Wilo CronoNorm NLG
Brand: Tianjin Shiny-Metals Technology Co., Ltd.
SKU: CronoNorm-NLG
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: Germany

Brand Name: Wilo

Model Number: CronoNorm-NLG

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: Negotiable

Packaging Details: Standard Export Plywood Case or Carton

Delivery Time: 5-8 weeks

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: Peak Season Lead Time: 1-3 months ，Off Season Lead Time: 1 month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                CronoNorm NLG Glanded Pump, Wilo Glanded Pump, Wilo CronoNorm NL Pump


Temperature Range:	Up To 120°C	Application:	Water Supply, Heating, Air Conditioning, Industrial Processes
Flow Rate:	Up To 500 M3/h	Head:	Up To 160 M
Inlet/Outlet Size:	DN 32 - DN 200	Motor Power:	Up To 55 KW
Pressure Range:	Up To 16 Bar	Speed:	Up To 3600 Rpm

Temperature Range:	Up To 120°C
Application:	Water Supply, Heating, Air Conditioning, Industrial Processes
Flow Rate:	Up To 500 M3/h
Head:	Up To 160 M
Inlet/Outlet Size:	DN 32 - DN 200
Motor Power:	Up To 55 KW
Pressure Range:	Up To 16 Bar
Speed:	Up To 3600 Rpm

Industrial Circulation Glanded Pump Heating And Cooling Wilo CronoNorm NLG

Company Info

Address: Tianjin, China

Business Type: Trading Company

Business Range:Auto, Motorcycle Parts & Accessories, Bags, Cases & Boxes, Electrical & Electronics, Health & Medicine, Industrial Equipment & Components, Instruments & Meters, Manufacturing & Processing Machinery, Packaging & Printing, Service, Tools & Hardware

Management System Certification:ISO 9001

Main Products: Water Pump Set

Company Introduction:Tianjin Shiny-Metals Technologyco., Ltd., situated in Tianjin, China, is a professional enterprise specializing in pump research and development, design, production, sales, trade, and service. Currently, our products have been exported to over 40 countries and regions, consistently enhancing our global brand reputation. We manufacture a diverse range of pumps, including centrifugal pumps, axial flow pumps, jet pumps, submersible pumps, deep-well submersible pumps, and swimming pool pumps, spanning over 500 specifications. We have obtained the ISO 9001 certification from the International Organization for Standardization (CQC). Additionally, our civilian motors have undergone product evaluation for CCC China mandatory certification. Furthermore, we have achieved certifications such as CE, EMC, GS, RoHS, EAC, SASO, and ST. Our company fulfills customer needs with high-quality products, reasonable prices, and exceptional pre-sales, in-sales, and after-sales services. Adhering to the management principles of "quality first, customer first, and reputation-based", we are committed to providing global customers with the best water pump and water treatment system solutions, enhancing their quality of life. Our pursuit is "water makes the world a better place, we make water even better"

Product Description

Wilo CronoNorm NLG is a single-stage, low-pressure centrifugal pump suitable for heating, cooling, and industrial circulation applications.

Maximum traffic: 2400m³/h
Maximum head: 105m

Permissible temperature range:-20°C to +120°C
Mains connection: 3~400 V, 50 Hz
Nominal diameter :DN 150 to DN 300
Max. operating pressure: 16 bar

Aplication field :Wilo CronoNorm NLG is suitable for pumping heating water (compliant with VDI 2035), chilled water, and water/ethylene glycol mixtures (non abrasive substances), and is widely used in irrigation, construction services, general industry, power plants, and other fields. It plays an important role in various industrial and civil facilities that require fluid transportation.

Your advantages

IE3/IE4 motor technology for energy-saving operation
Optimised efficiency reduces life cycle costs
Bidirectional, force-flushed mechanical seal
Exchangeable neck rings
Permanently lubricated, generously sized ball bearing
Low NPSH value, optimal cavitation characteristics

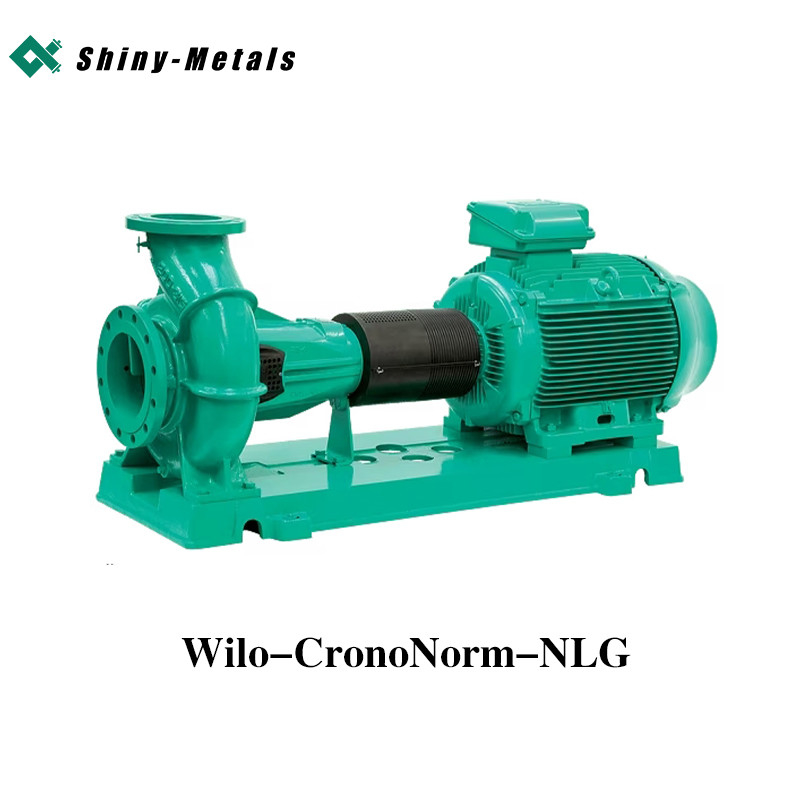

Industrial Circulation Glanded Pump Heating And Cooling Wilo CronoNorm NLG 1

Design

Single-stage, low-pressure centrifugal pump with axial suction, mounted on a baseplate.

Application

Pumping of heating water (acc. to VDI 2035), chilled water and water/glycol mixtures without abrasive substances in heating, chilled water and cooling systems.
Applications for irrigation, building services, general industry, power stations, etc.

Equipment/function

Single-stage low-pressure centrifugal pump in monobloc design with coupling, coupling guard, motor and baseplate

Mechanical shaft seal or stuffing box

Typekey

Example	NLG 200/315-75/4
NLG	Series designation: Standard pump
200	Nominal diameter DN of pressure port
315	Nominal diameter of impeller [mm]
75	Rated motor power P2 [kW]
4	number of poles

Technical data

Permissible temperature range -20°C to +120°C
Mains connection 3~400 V, 50 Hz
Protection class: IP55
Nominal diameter DN 150 to DN 300
Max. operating pressure 16 bar

Materials

Pump housing and pressure lid: EN-GJS-500-7
Bearing bracket: EN-GJL-250
Impeller: EN-GJL-250(special version: G-CuSn10)
Shaft: 1.4028
Stationary wear rings: G-CuSn10
Mechanical seal: AQ1EGG;(other mechanical seals on request)

Construction

Single-stage horizontal spiral housing pump with bearing bracket and exchangeable stationary wear rings in process design
Shaft seal using mechanical shaft seals in accordance with EN 12756 or packing stuffing box
Spiral housing with cast pump bases. Bearing of the pump shaft using greased grooved ball bearing
Shaft coupling with intermediate sleeve

Scope of delivery

Pump
Installation and operating instructions
Pump with free shaft end or
Pump on baseplate with coupling and coupling guard or
Completely mounted pump on baseplate with electric motor

Options

Other materials and versions on request
Other voltages and frequencies available on request.
